Innovative Electronic Solutions

Our Products

Inductive Components

Transformers | Inductors

High-performance components for precision applications, leveraging inductive fields.

Read More

Electronic Devices

Converters | Inverters | Power Supplies
Cutting-edge devices and reliable replacement components for seamless operations.
Read More

Spare Parts and Railway Service

Electronic and Electromechanical Components
Comprehensive solutions for efficient rail transport, maintenance, and safety.
Read More

Inductive Components

INDUCTIVE POWER COMPONENTS:

Toroidal transformers
Power range10 ÷ 2000 VA
Frequency range50 ÷ 400 Hz
Input voltage115, 230, 380, 460, 540 V
Output voltageOn demand
Dielectric strength4kV (50Hz-60sec.)
Magnetic coreGrain oriented silicon steel
Power range10 ÷ 2000 VA
Frequency range50 ÷ 400 Hz
Input voltage115, 230, 380, 460, 540 V
Output voltageOn demand
Dielectric strength4kV (50Hz-60sec.)
Magnetic coreGrain oriented silicon steel

Customized components, designed with special attention to the specific requirements:

•Insulation treated under vacuum

•Insulation level 6 kV ÷ 40 kV

•Temperature range (-35°C + 80°C)

•Partial discharge free in case of the steepest operating voltages

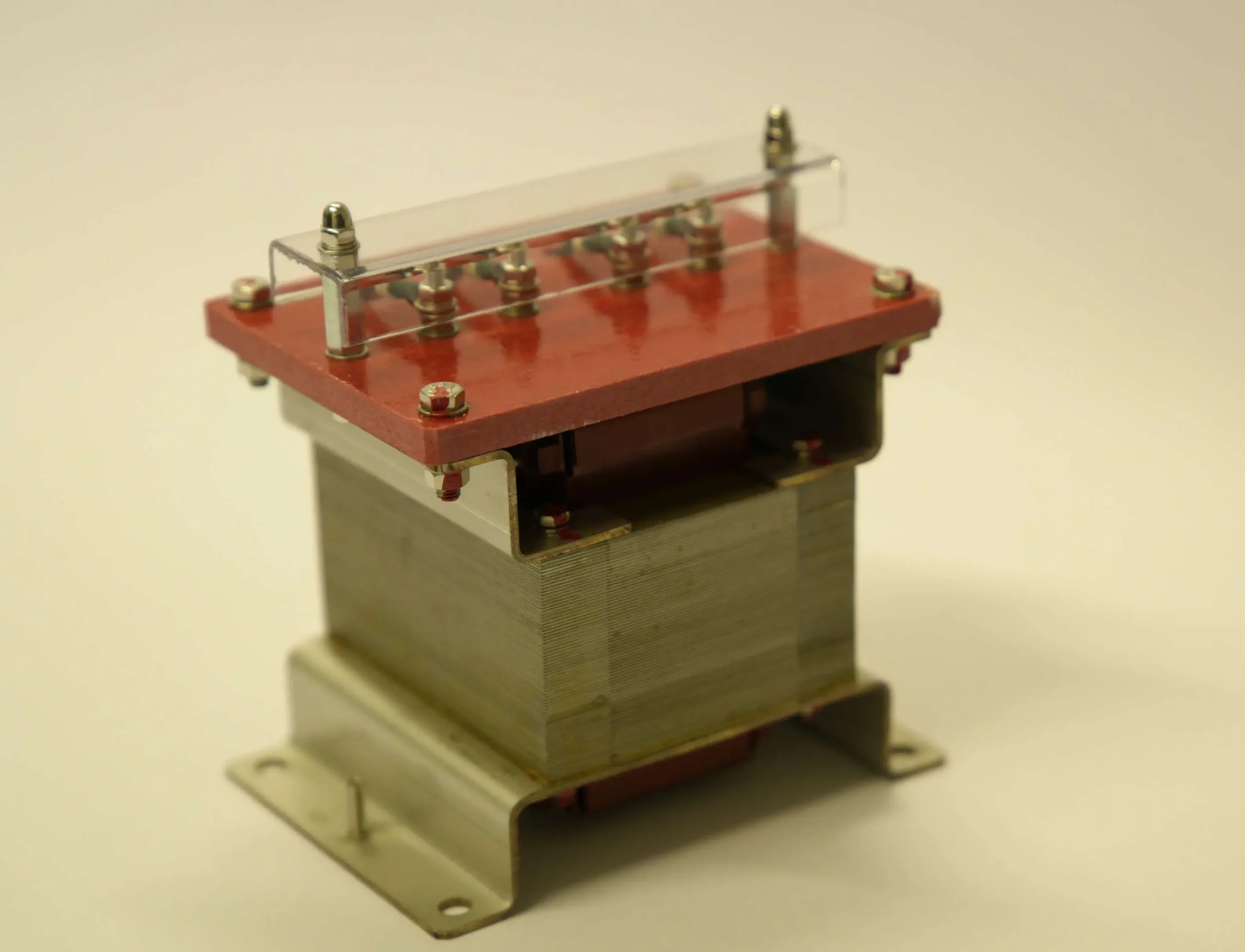

Single Phase Transformer

Three Phase Transformer

Power range1 VA ÷ 5 0 kVA (50/60Hz)
Frequency range50 ÷ 60 Hz
Dielectric test voltage3 ÷ 20 kV
Magnetic coreLaminated cores
Partial discharge freeUp to 4 kV
Power range1 ÷ 300 KW
Frequency range4 ÷ 100 KHz
Dielectric strength3 ÷ 20 kV RMS (50Hz - 60sec.)
Magnetic coreFerrites, Fe-Amorphous
Partial discharge freeUp to 4 kV
Power range1 ÷ 20 kVA
Frequency range4 ÷ 50 KHz
Dielectric strength3 ÷ 20 kV RMS (50Hz - 60sec.)
Magnetic coreFerrites, Fe-Amorphous, Nanocrystalline
Partial discharge freeUp to 4 kV
Three phase Power1 ÷ 5 kVA
Input voltage380 V ± 10%
Dielectric strength2 ÷ 20 kV RMS (50Hz - 60sec.)
Magnetic coreGrain oriented Silicon steel
Partial discharge free Up to 4 kV
Inductance100 ÷ 3000 µH
RMS current10mA ÷ 20A
Frequency10 ÷ 500 kHz
Dielectric strengthUp to 20 KV
Magnetic coreGrain oriented silicon steel, Nanocrystalline, Ferrites, Powered cores

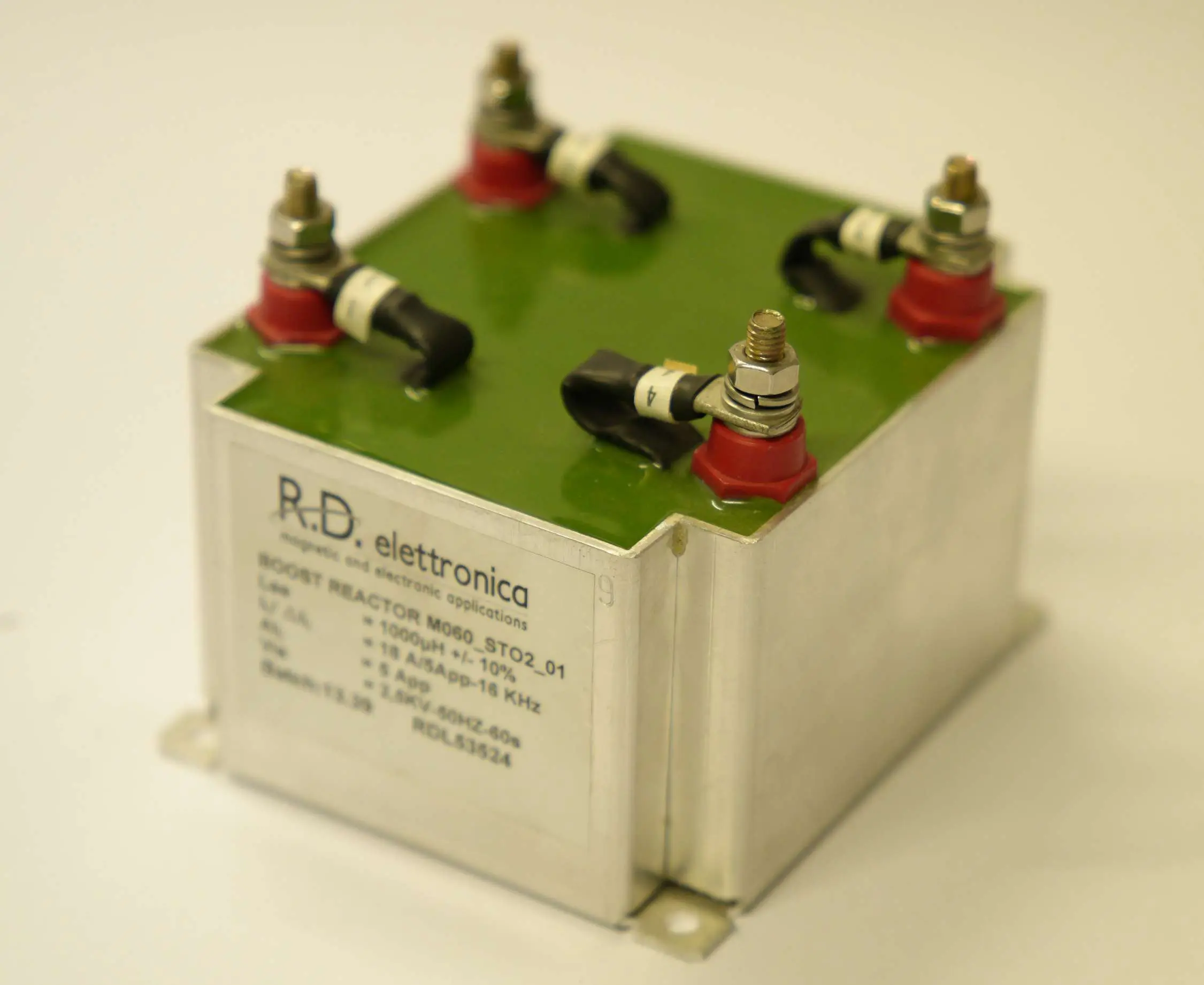

Inductance0,2 ÷ 2 mH
RMS current30 ÷ 150 A
Current ripple2 ÷ 20 %
Frequency of ripple4 ÷ 80 kHz
Dielectric test voltage3 ÷ 20 kV RMS (50Hz - 60sec.)
Magnetic coreFerrites, Fe-Amorphous, Nanocrystalline, Grain oriented silicon steel
Inductance0,5 ÷ 5mH
RMS current10 ÷ 60 A
Current ripple5kHz ÷ 20kHz
Frequency of ripple50 ÷ 60 Hz
Dielectric strength5 kV RMS (50Hz - 60sec.)
Magnetic coreGrain oriented silicon steel, Ferrites, Nanocrystalline
Partial dischargeUp to 2 kV
Inductance40 ÷ 800 µH
RMS current10 ÷ 150 A
Current ripple2 ÷ 20 %
Frequency of ripple5 ÷ 50 kHz
Dielectric strengthUp to 3 kV RMS (50Hz - 60sec.)
Magnetic coreGrain oriented silicon steel, Ferrites, Nanocrystalline

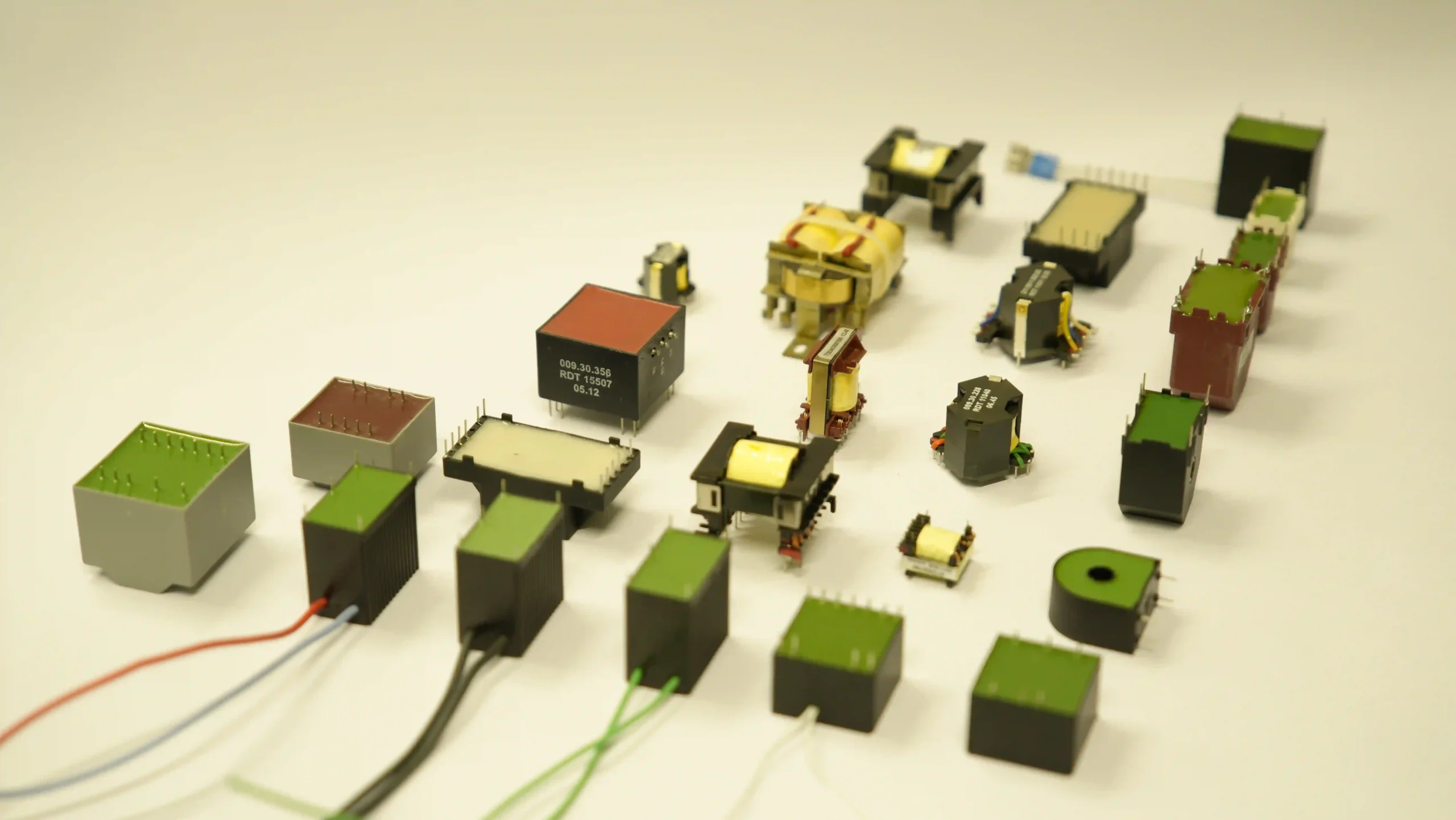

INDUCTIVE COMPONENTS FOR PRINTED CIRCUITS (PTH & SMD):

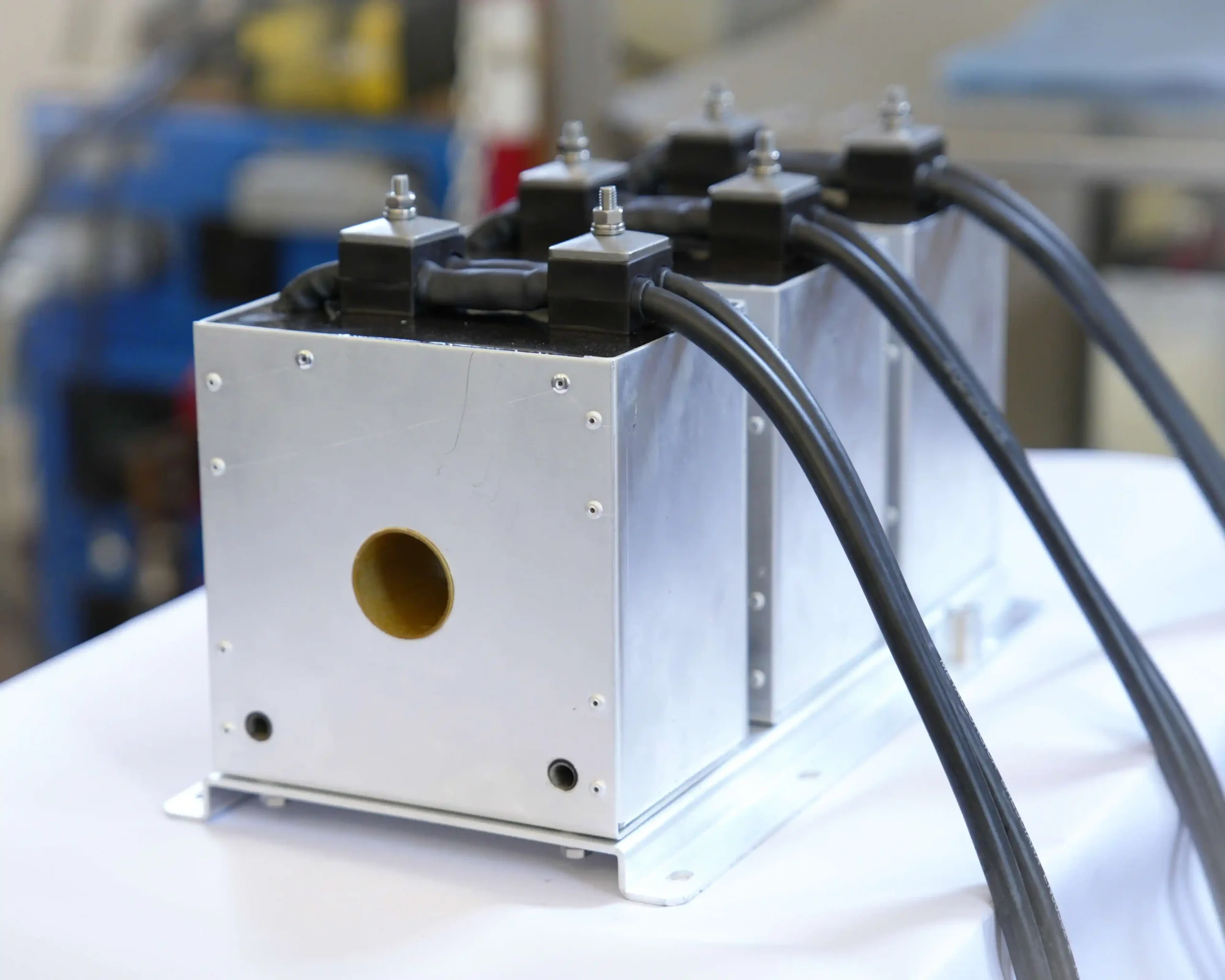

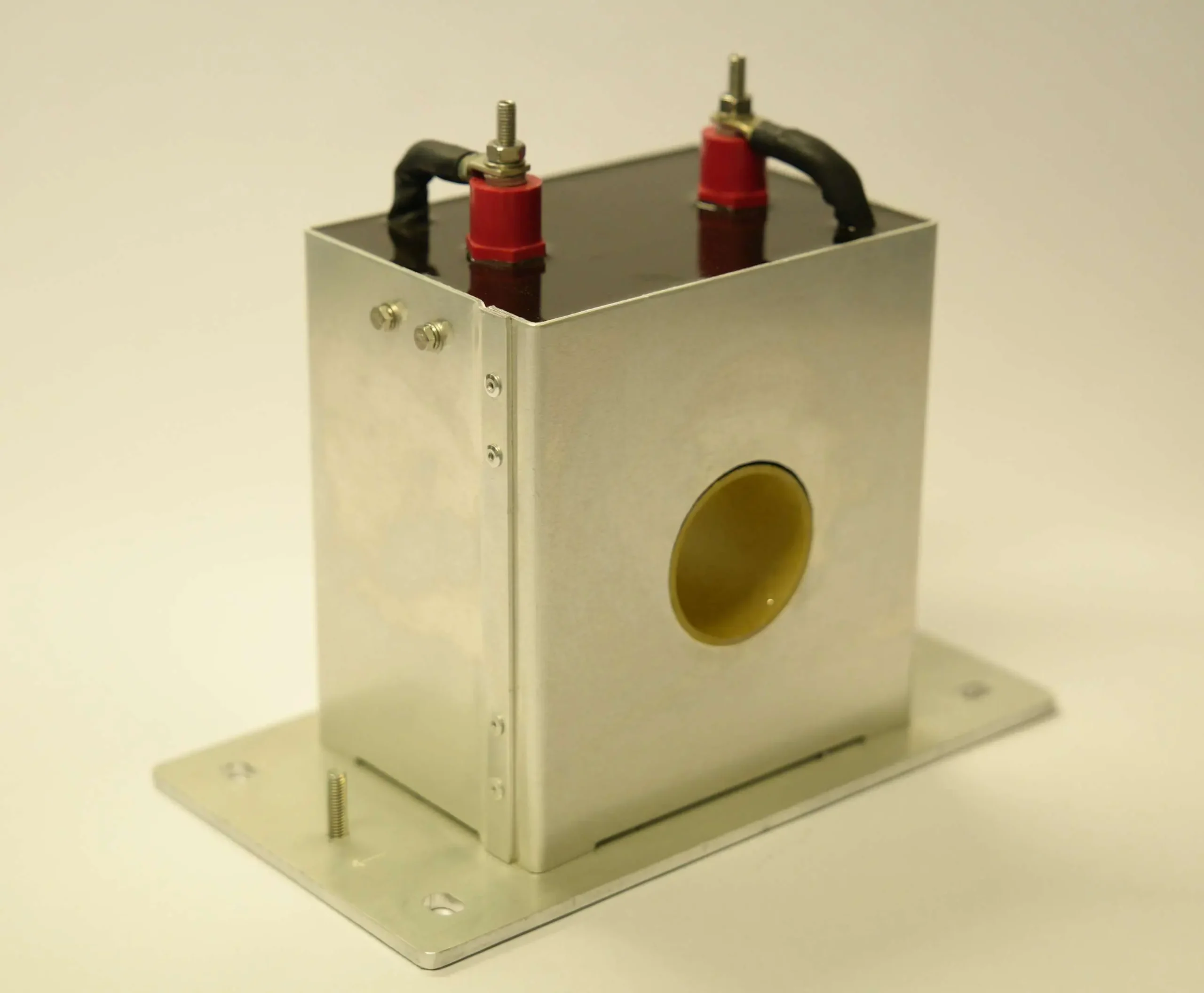

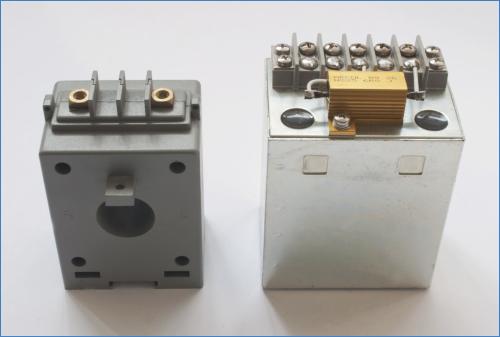

Current transformers
Primary current range5A ÷ 40A
Operating frequency50Hz ÷ 200 kHz
Insulation level4.0 kV (50Hz - 60sec.)
Precision class0.2 % ÷ 1.0%
LinearityFrom 20% to 120% In 1-phase CT
From 1% to 120% In omopolar CT
Magnetic coreFerrites, Grain oriented silicon steel, Mumetal, Fe-Amorphous
Turns ratio f = 40 Hz ÷1 KhzTypical range 1/1000, 1/1500, 1/2000, 1/2500 1/3000
Turns ratio f = 1 KHz ÷200 KhzTypical range 1/100, 1/150, 1/200, 1/250 1/300
Primary current range5A ÷ 40A
Operating frequency50Hz ÷ 200 kHz
Insulation level4.0 kV (50Hz - 60sec.)
Precision class0.2 % ÷ 1.0%
LinearityFrom 20% to 120% In 1-phase CT
From 1% to 120% In omopolar CT
Magnetic coreFerrites, Grain oriented silicon steel, Mumetal, Fe-Amorphous
Turns ratio f = 40 Hz ÷1 KhzTypical range 1/1000, 1/1500, 1/2000, 1/2500 1/3000
Turns ratio f = 1 KHz ÷200 KhzTypical range 1/100, 1/150, 1/200, 1/250 1/300

Customized components, designed with special attention to the specific requirements:

•Low leakage inductance

•Low coupling capacitance

•Selected magnetic materials (Ferrites, Fe-Amorphous)

•Insulation up to 20 kV

Customized components, designed with special attention to the specific requirements:

•Low magnetic reversal losses

•Low weight and volume

•Temperature range (-35°C + 80°C)

•Rated power up to 200 W •Insulation up to 20 kV

Customized components, also with nanocrystalline ring tape cores for increased driving capacity respect to conventional materials:

•Low magnetic reversal losses

•Low weight and volume

•Temperature range (-35°C + 80°C)

•Rated power up to 5 kW •Insulation up to 4 kV

Customized components, also with Fe-Amorphous ring tape cores for increased power respect to conventional materials:

•Low magnetic reversal losses

•Low weight and volume

•Temperature range (-35°C + 80°C)

•Rated power up to 5 kW •Insulation up to 20 kV

Customized components, designed with special attention to the specific requirements:

•Low corrente magnetization

•Low leakage inductance

•Low coupling capacitance

•Selected magnetic materials (Ferrites, Fe-Amorphous)

•Insulation up to 20 kV

•High inductance

•Low winding capacities

•Low chopper losses

•Smallest size

Electronic Devices

Converters
Power10 ÷ 60 kVA
Input voltage600 ÷ 4000 Vdc
Output voltage400 Vac - 3Ph
Power10 ÷ 60 kVA
Input voltage600 ÷ 4000 Vdc
Output voltage400 Vac - 3Ph
Power1 ÷ 10 kW
Input voltage24/72/110 Vdc
Output voltage250 ÷ 380 Vac
Power1 ÷ 10 kW
Input voltage600 ÷ 4000 Vdc
250 ÷ 380 Vac
Output voltage24/72/110 Vdc
Power1 ÷ 20 kVA
Input voltage220 ÷ 400 Vdc
Output voltageon demand

Spare Parts and Railway Service

SPARE PARTS:

R.D. Elettronica has the knowledge and expertise to provide spare parts for the maintenance and repair of railway equipments:

Passive Components: transformers, inductors, current and voltage transformer , capacitors, resistors, circuit boards, resistors, fuses.

Active components: IGBT, power semiconductors, optical straps, integrated circuits, transistors, diodes.

Electromechanical Components: Stotz, relays, switches, contactors.

SERVICE RAILWAY:

R.D. Elettronica, at request of the railway authorities, is able to carry out maintenance and repair of electronic circuit board and equipment like:

-UPS

-Batteries Charger

-Auxiliary converters

-Inverters.

Countries: Russia, Germany, France, China, India, Canada, U.S.A., England, Ireland, Great Britain, Spain, Poland, Arab Countries, Brazil, South Africa, Switzerland.
